13 October 2015
Got my (brave...) friend adjusting the variometer in real time whilst
I talked to him by phone, and whilst transmitting at one setting below

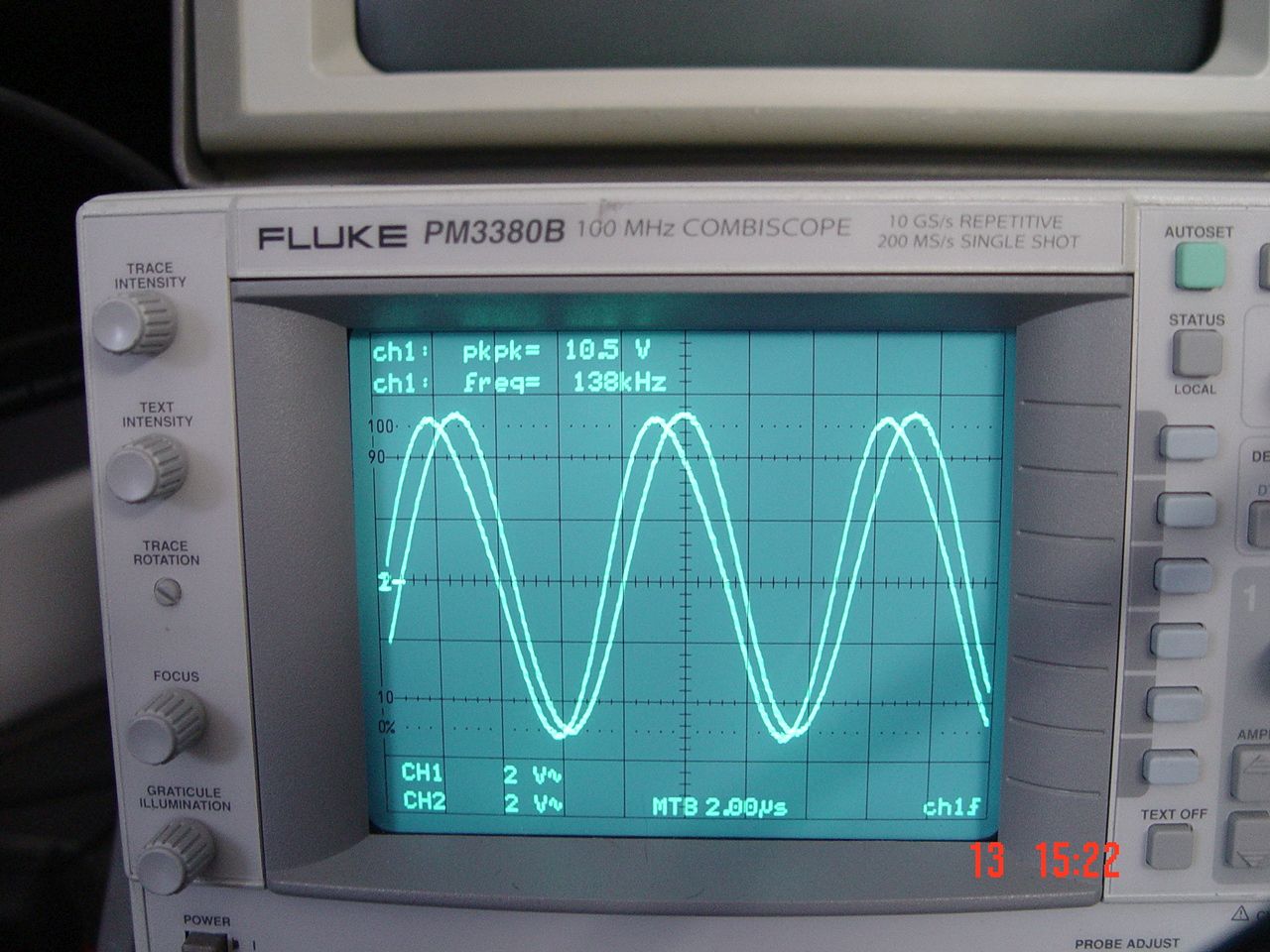

full power. I watched the `scope in the shack for best results. Is
this an adequate match or should I get better than this? I think it's
a resistive mismatch that's showing? It's a pain not having a colour
scope but I am pretty sure it's amps leading volts being shown here.
On full power the amp trips out, not sure if it's SWR mismatch or
current overload. Will need to check that out. No arcing at the
matching and loading coils though.
http://www.chriswilson.tv/best-match.jpg
I built the Jim Morittz scopematch using the capacitive divider
circuit, can i work out the antenna current from this? Thanks.
2E0ILY
--
Best regards,
Chris mailto:[email protected]
|
