Re: LF: Varistor spike management

To: DK7FC <[email protected]>
Subject: Re: LF: Varistor spike management
From: Chris Wilson <[email protected]>
Date: Fri, 28 Apr 2017 12:36:26 +0100
Dkim-signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=gmail.com; s=20161025; h=from:date:message-id:to:subject:in-reply-to:references:mime-version :content-transfer-encoding; bh=nDvja1B5Dmx4KpDNn7OAoOIlMTdpx2fGxq1NlYXPl+8=; b=htD4zRbr2AKj4d+Dv6vqhV+lq+Cu7s/b0Le9DX/BMSgJO9G528r8i/uv3qFCH7gG81 Nsd5Cis2iUFmQbw1nSS+MRKz5uLsYWVTQggf4UeYdzU37QU9SE+z/S8H2u6gj7AlmlOs 2kCG+0G3WU4EyUqY3k/snlfXoxLDJKK4rl83FNyC6FmXv0U8RsdDkuW/uQhkmnWy18/Q ut1h8tZ6/mADIgnUANjJ9qMqNlQ1ayBCxR53VBz73Yrs+YTqRhnzuNAnqNOD7tfTjc62 sxOkJJQaObjotJE5sE+Z7cyg4YxVf34iztfY5ATGMceQ/i2stvbRq9mJE6NIHExg5Sf+ Xhvw==
In-reply-to: <[email protected]>
References: <[email protected]> <[email protected]>
Reply-to: [email protected]
Sender: [email protected]
 28th May 2017

Hi Stefan, remarkable work on VLF, congratulations!!

I  see these with all FET's but I acquired very cheaply some Wolfspeed
FETs  with a lot of overhead. These spikes sometimes kill lesser ones.

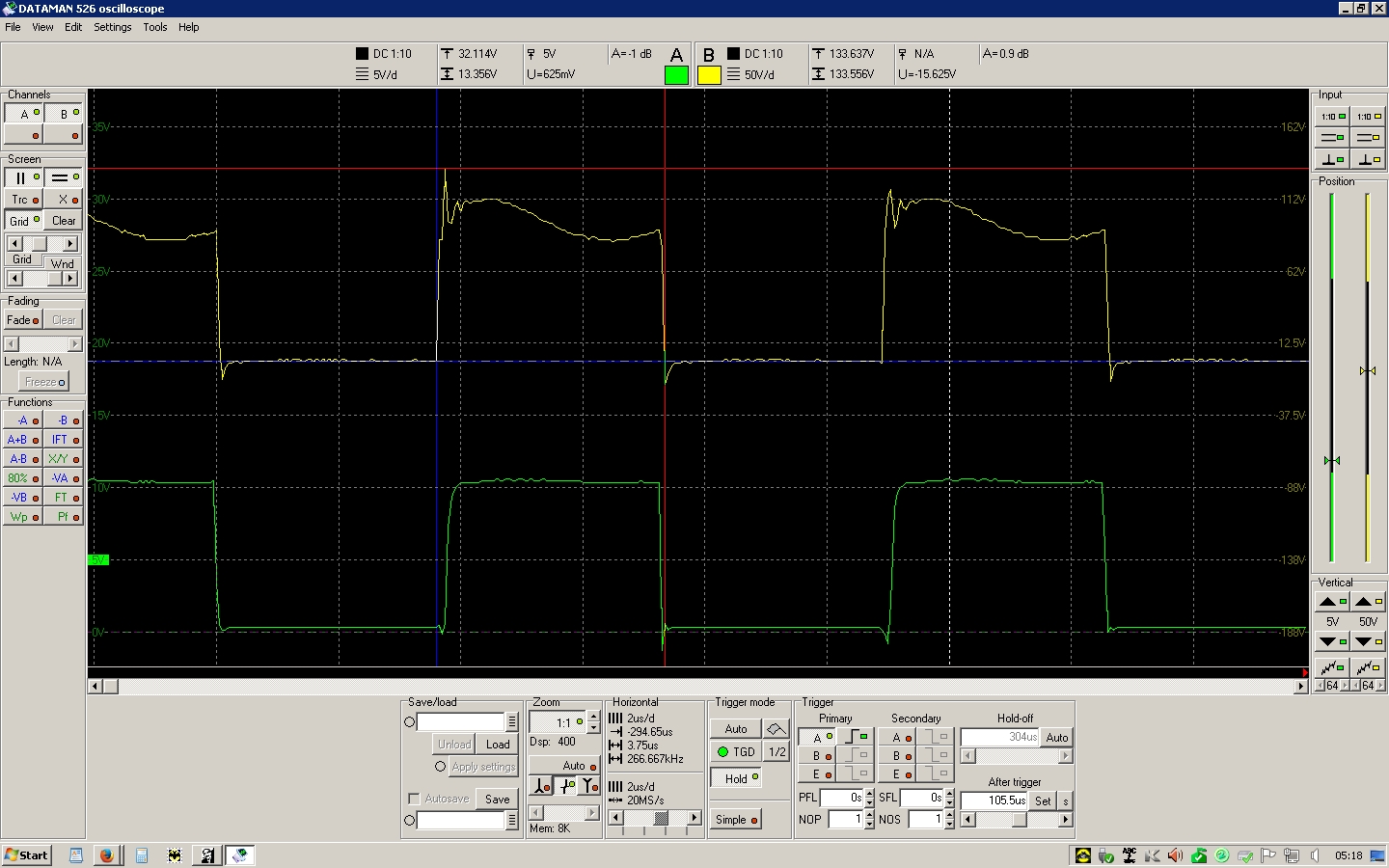

If  you  follow  these  links  you  can  see the normal gate and drain
waveforms,  and  the  drain waveform without a Varistor as an OPERA TX
period  ends,  i  took the latter from a series of screenshots showing
the highest level the close TX spike reaches

http://www.gatesgarth.com/wolfspeed-scope-capture-50v.jpg

http://www.gatesgarth.com/wolfspeed-overshoot-50v.jpg

http://www.gatesgarth.com/wolfspeed.pdf





Best regards,
 Chris  2E0ILY                          mailto:[email protected]

 My part time LF grabber is at http://www.chriswilson.tv/grabber.html


> Hi Chris,

> Which type of FETs are you using?
> The IRFP460A for example has a built in Z-diode which seems to handle
> the spikes. Anyway i put a 150 Ohm / 220 pF (for LF) series RC paralell
> to the Drain-Source...

> 73, Stefan


--
Best regards,
 Chris                            mailto:[email protected]
