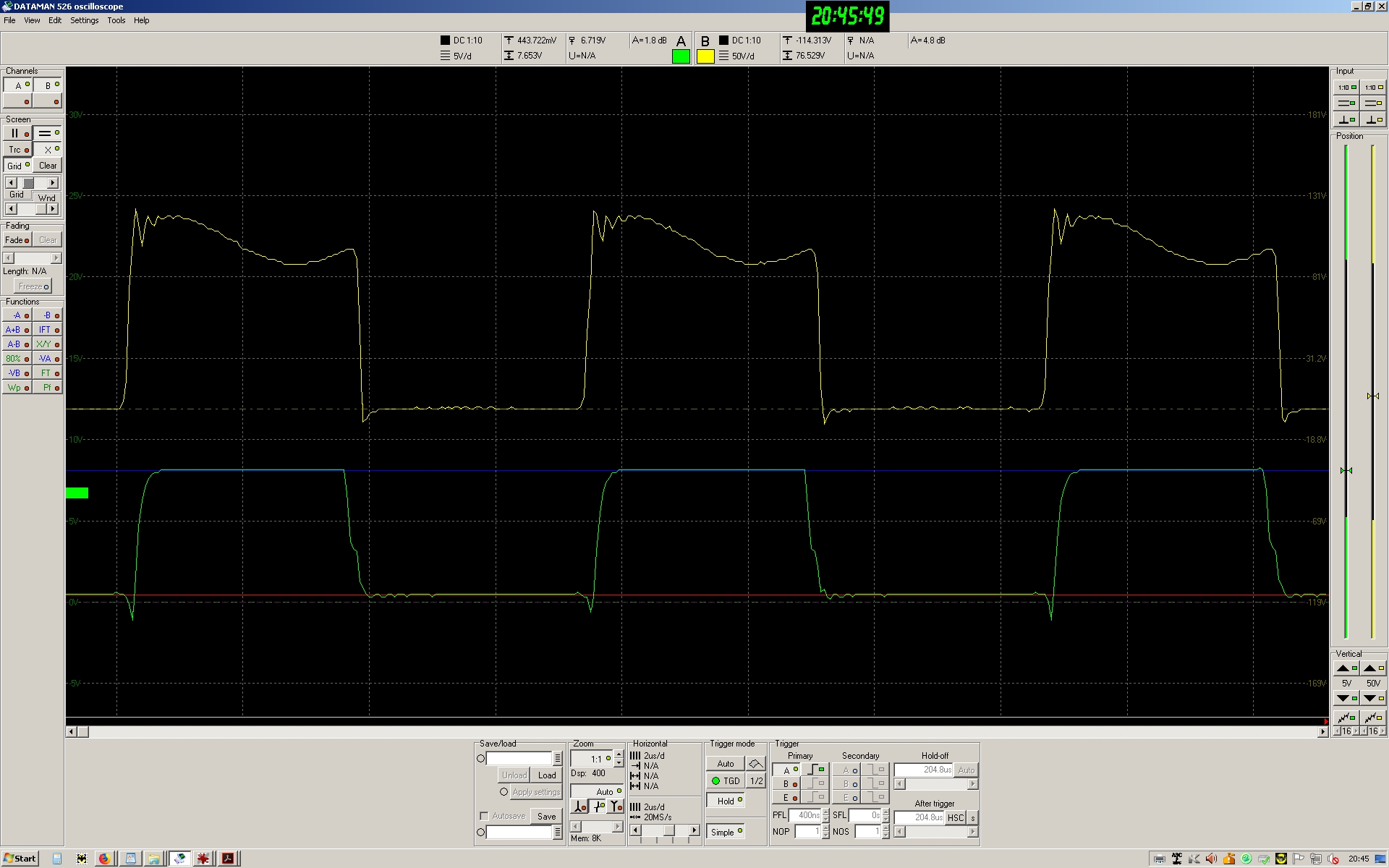

Hello, wrong link to waveforms, corrected below. > I added 2 off 86k resistors as resistive dividers as shown. Voltages > were as expected 1.87 and 1.86V on pins 2 and 4 but both driver output > pins sat high at circa 12V . Removing the added resistors but running > the MCP1404 on 9V all works fine with gate and drain waveforms as > shown here: > http://www.gatesgarth.com/9v.jpg -- Best regards, Chris mailto:[email protected] |
