Re: LF: Anyone good with Elsie?

from [Andy Talbot] [Permanent Link][Original]
To: LineOne <[email protected]>
Subject: Re: LF: Anyone good with Elsie?
From: Andy Talbot <[email protected]>
Date: Thu, 23 Aug 2018 13:31:12 +0100
Dkim-signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=gmail.com; s=20161025; h=mime-version:in-reply-to:references:from:date:message-id:subject:to; bh=oCwM+KJEXDMrkVOVaU6DEkbS2+T6J0IHp97GAJPsoWA=; b=SVXtmXiw1hcPwCFtxK5INb5UFU4m9NcedtsnsY/e6h9iQ8SzKZDn2eMtJvPHp7UBgW veS3GEKiu+lgfMNUvkIIIl5vt4POzUg01U7+P+557gcw9n0YYK9EOsDR4+RSW+yqslnz v0ugYnjVKBClsHIqU8dO6MiZqyhYUH2p8D5YBWN0Xj/wVieoc8VSNGVCSrYp3geul3V/ VuPqx1c4CTQzxnZPWFh231dBo0UVfDHLd/d8zwL1l9+Jo52OqQaaso6SPVVS2QiiWas0 VbuIobVDV5gXP4q42NXTaA9gvx6x2ybS3G5iqwz5ZDRMZIqCZoSjRSyI1nvXdwz7kkqG AOTg==
In-reply-to: <[email protected]>
References: <[email protected]>
Reply-to: [email protected]
Sender: [email protected]
The caps are likely to be close to their proper value ], which leaves the values of the inductors.
You have E12 preferred values so guess you're using ready made L components.

They may be specified at a different frequency, a different mounting etc. all of which affect their value.   If you can't adjust the inductance, frig the caps, as Stefan suggested.

I checked the design using ADDE - got the same frequency response plot


On 23 August 2018 at 12:08, Chris Wilson <[email protected]> wrote:


Hello  LF'ers

Is anyone able and willing to advise on my band pass RX filter design
please? I have made a band pass filter for 137kHz reception and
checked it with my SDR in real time. It is shifted a little high and I
am wondering what I need to change to pull it a bit lower? Any
practical advice or component values welcome. Adjustability would be
nice! Thanks

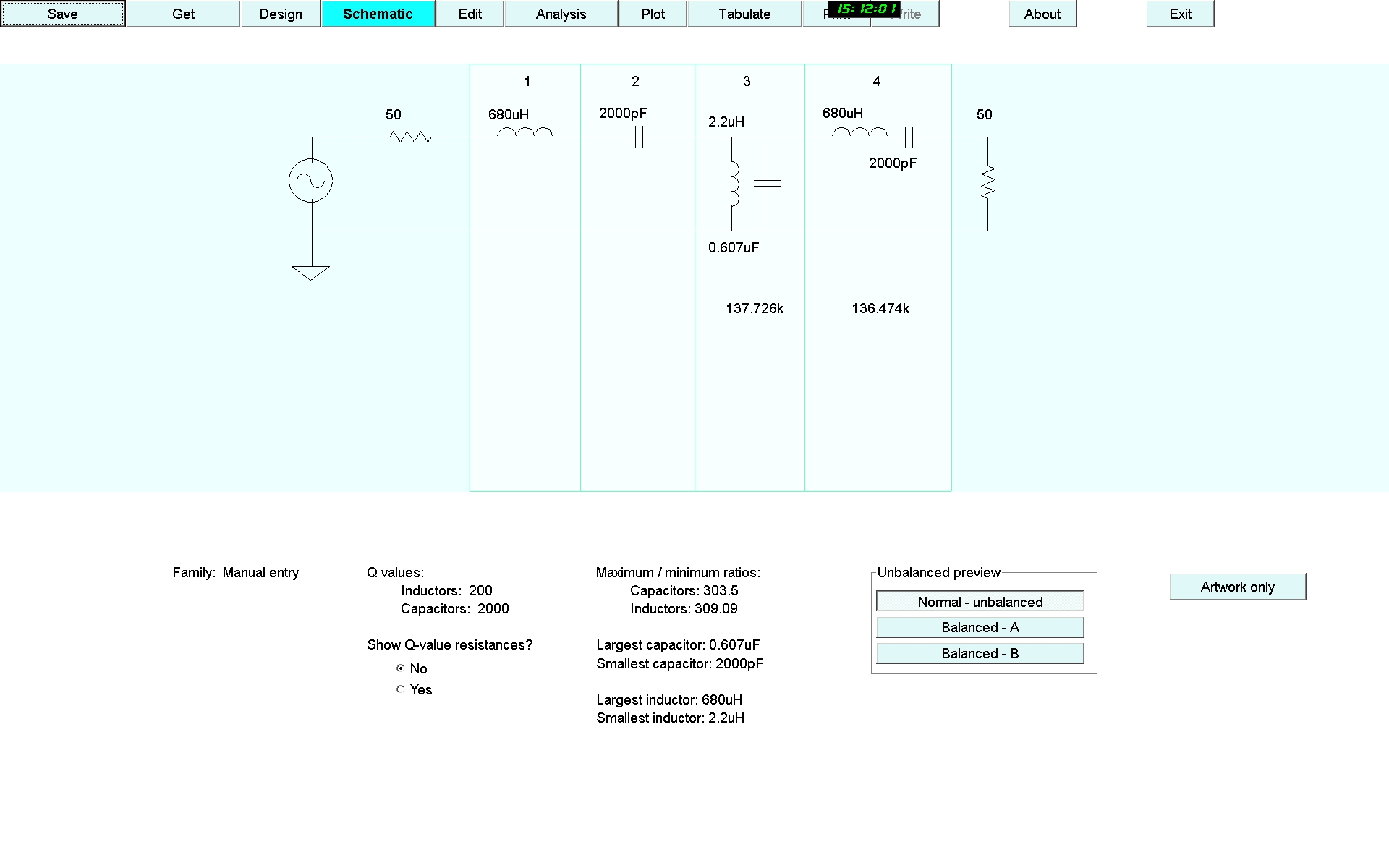

Filter design is at http://www.chriswilson.tv/lf-circuit.jpg

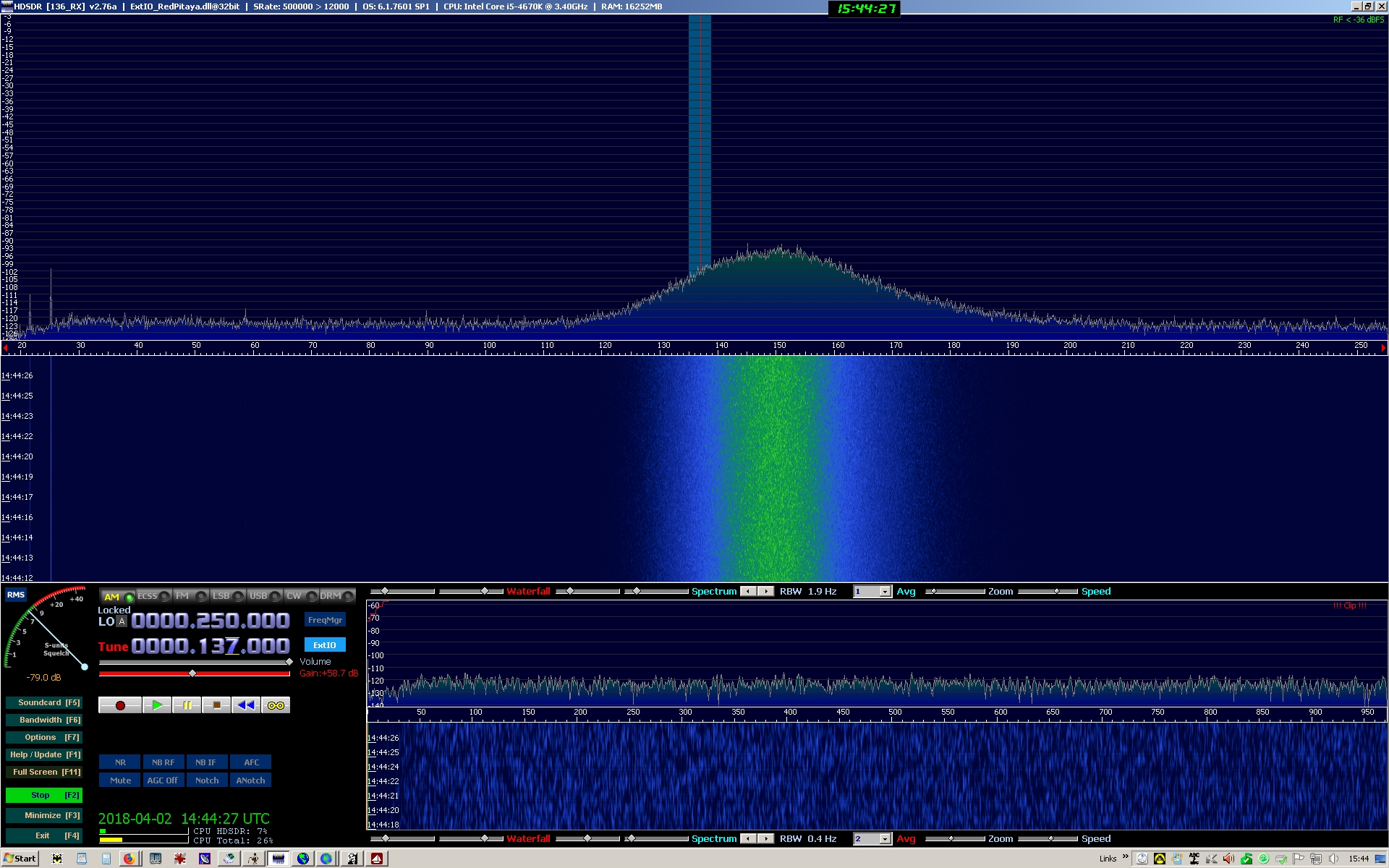

Real world results at : http://www.chriswilson.tv/passband.jpg

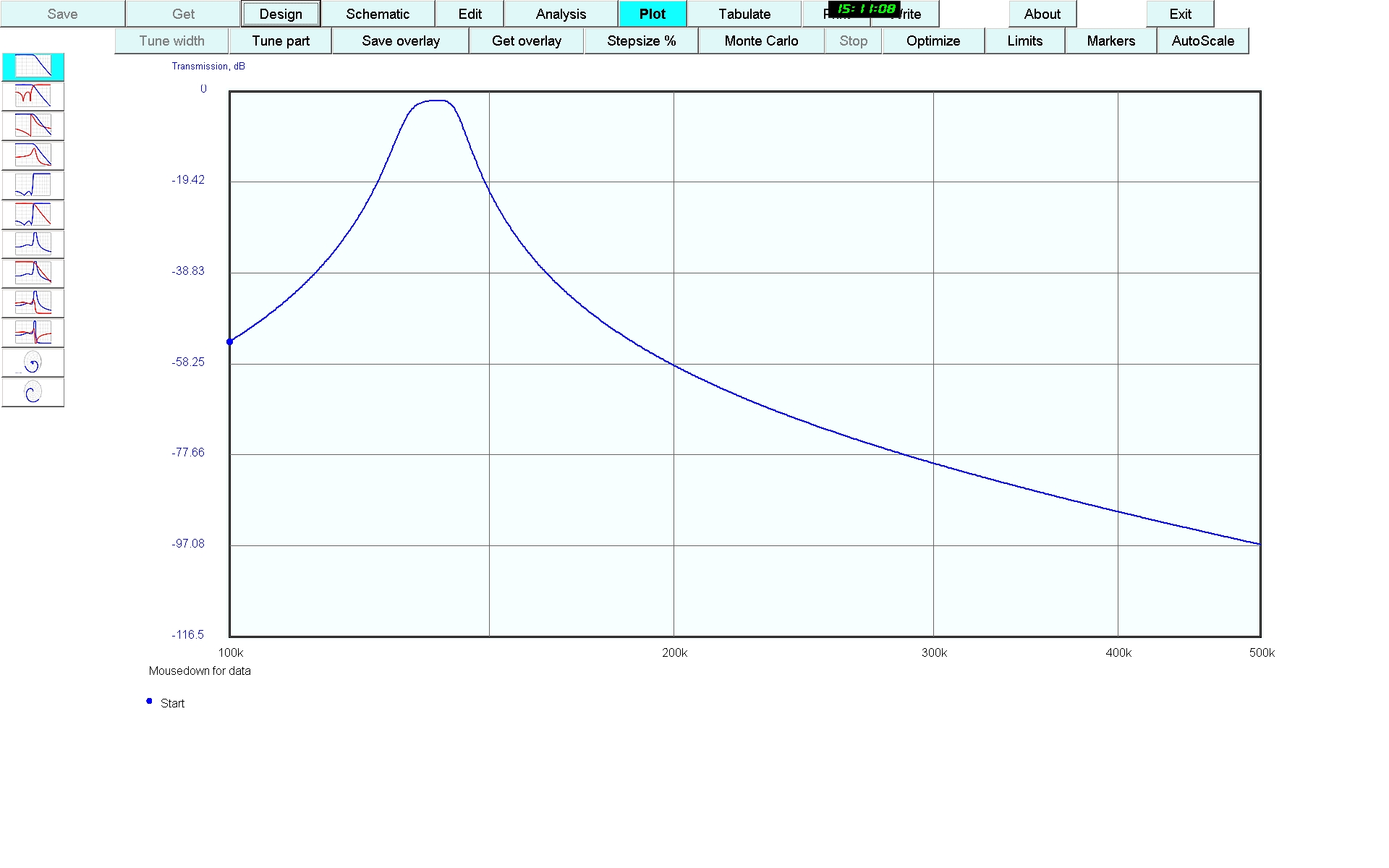

ELSIE plot at : http://www.chriswilson.tv/lf-plot.jpg
--
Best regards,
 Chris                          mailto:[email protected]
